Optimizing Tungsten’s Dimensional Stability in Metal Injection Molding
Metal injection molding (MIM) is a sophisticated manufacturing process that combines the versatility of plastic injection molding with the strength and durability of metals. Among the various materials used in MIM, tungsten stands out for its exceptional properties, including high density, high melting point, and excellent resistance to wear and corrosion. However, achieving precise dimensional stability with tungsten in MIM can be challenging due to its unique characteristics. In this article, we’ll explore effective strategies to improve the dimensional stability of tungsten components produced through metal injection molding.
Understanding Dimensional Stability Challenges with Tungsten

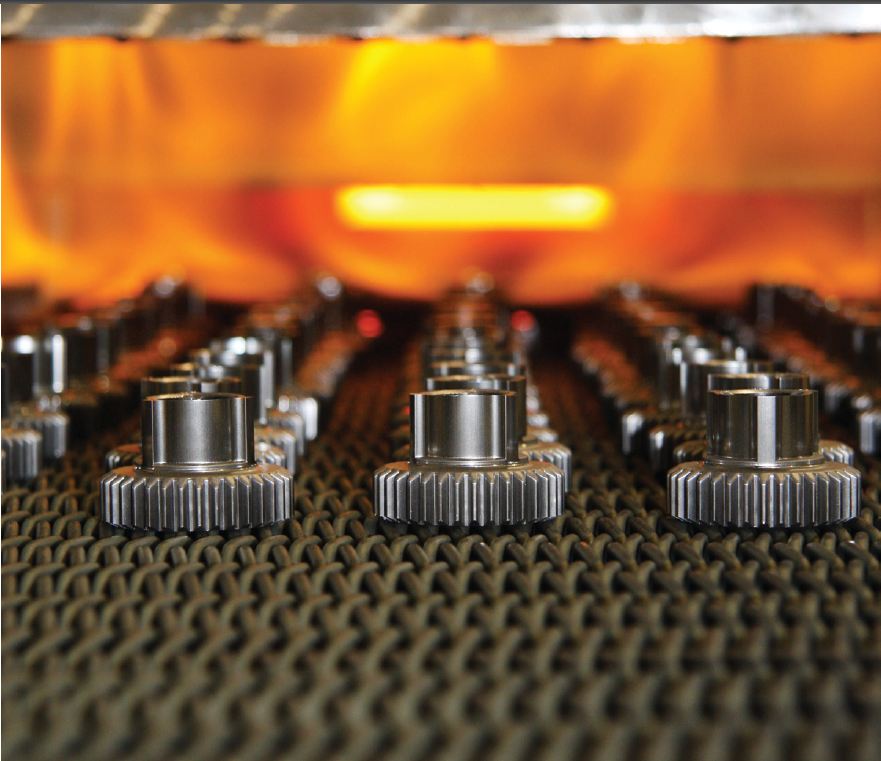

Tungsten, with its high melting point and density, poses unique challenges when it comes to dimensional stability in MIM. During the sintering process, which involves heating the molded part to near-melting temperatures, tungsten can experience significant shrinkage and distortion. This is primarily due to the material’s high density and the nature of the sintering process itself.
Moreover, tungsten’s high melting point necessitates higher sintering temperatures, which can exacerbate the issues of shrinkage and distortion. Improper control of sintering parameters, such as temperature, atmosphere, and hold times, can lead to inconsistent and unpredictable dimensional changes, resulting in parts that deviate from their intended specifications.
Strategies for Improving Dimensional Stability
To overcome these challenges and achieve consistent dimensional stability in tungsten MIM parts, manufacturers can employ several strategies throughout the various stages of the MIM process.
1. Feedstock Optimization
The feedstock, which is a mixture of tungsten powder and a polymer binder, plays a crucial role in determining the final dimensional stability of the molded part. Optimizing the feedstock composition can significantly improve dimensional control.
a. Powder Characteristics: Using high-quality tungsten powder with consistent particle size and shape can enhance the homogeneity of the feedstock and minimize variations in shrinkage during sintering.
b. Binder System: The selection and formulation of the binder system are critical. Binders with low viscosity and good compatibility with tungsten powder can improve feedstock homogeneity and facilitate uniform debinding, reducing the risk of defects and distortion.
2. Injection Molding Process Optimization
Precise control of the injection molding process is essential for achieving consistent part dimensions. Key factors to consider include:
a. Mold Design: Carefully designed mold geometries and gating systems can minimize residual stresses and warpage in the molded parts.
b. Injection Parameters: Optimizing injection parameters, such as temperature, pressure, and flow rates, can ensure consistent filling of the mold cavity and reduce the risk of defects that could lead to dimensional instability.
3. Debinding and Sintering Process Control
The debinding and sintering stages are critical for dimensional stability in tungsten MIM. Effective control of these processes can minimize shrinkage and distortion.
a. Debinding: Carefully controlled debinding cycles, involving specific temperature ramp rates and hold times, ensure the uniform removal of the binder system without causing defects or distortion.
b. Sintering: Precise control of sintering parameters, including temperature, atmosphere, and hold times, is crucial for achieving consistent densification and minimizing dimensional changes in tungsten parts.
4. Sintering Atmosphere Optimization
The sintering atmosphere plays a vital role in controlling dimensional stability in tungsten MIM. Hydrogen-based atmospheres can facilitate effective densification and minimize oxidation, both of which can impact dimensional stability.
a. Hydrogen Partial Pressure: Adjusting the partial pressure of hydrogen in the sintering atmosphere can optimize the densification process and reduce dimensional changes.
b. Atmospheric Control: Maintaining consistent atmospheric conditions throughout the sintering process is essential for achieving uniform densification and minimizing distortion.
5. Post-Sintering Operations
Even after sintering, certain post-processing operations can be employed to further enhance dimensional stability in tungsten MIM parts.
a. Hot Isostatic Pressing (HIP): HIP involves subjecting the sintered part to high temperatures and isostatic gas pressure, which can improve densification, reduce porosity, and minimize dimensional changes.
b. Surface Treatments: Techniques like chemical vapor deposition (CVD) or physical vapor deposition (PVD) can be used to apply protective coatings that can improve dimensional stability and wear resistance.
6. Process Monitoring and Control
Implementing robust process monitoring and control systems is essential for achieving consistent dimensional stability in tungsten MIM. Real-time monitoring of critical parameters, such as temperatures, pressures, and atmospheres, can enable timely adjustments and corrections to maintain optimal conditions throughout the manufacturing process.
Conclusion
Achieving precise dimensional stability in tungsten metal injection molding requires a comprehensive approach that addresses various stages of the manufacturing process. By optimizing feedstock composition, injection molding parameters, debinding and sintering conditions, sintering atmospheres, and post-processing operations, manufacturers can minimize shrinkage and distortion, ensuring that tungsten MIM parts meet the required dimensional specifications. Continuous process monitoring and control, coupled with a deep understanding of the material’s behavior, are crucial for consistently producing high-quality, dimensionally stable tungsten components through metal injection molding.
